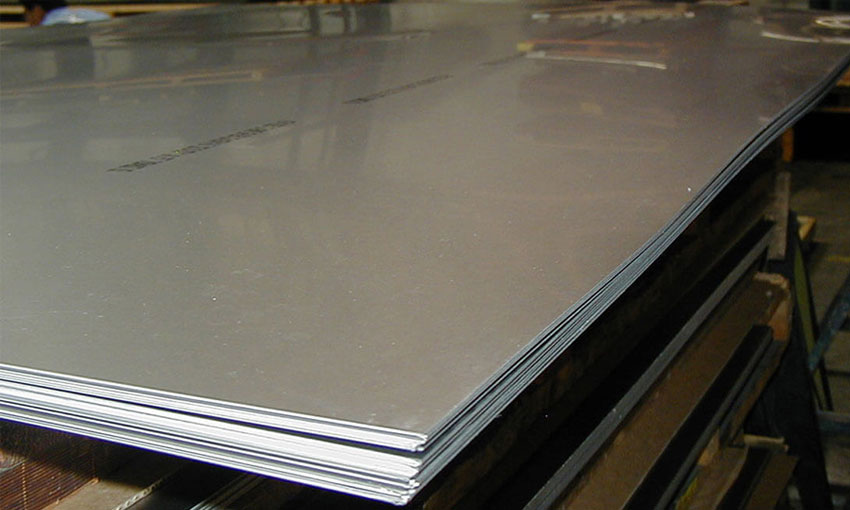

Diamond alloys are the top leading manufacturer, exporter, suppliers, and exporter of the high quality of 904L plates. They cater to the needs and requirements of the buyers are varying in different sizes, diameters, wall thickness and types like fabricated, seamless and welded. This grade plate is having high corrosion resistant ability at the wider range of corrosive atmosphere. Catering to the needs of the buyer the industry is offering the excellent quality of plates even at custom made specifications. They are also offering the product at reasonable rates in addition to the quality of sales and value-added services.
Grade 904L is the stainless steel alloy that is non stabilized stainless steel with the content of low carbon.
This high alloy SS is added with the copper alloy for improving the resistance ability to strong reducing acids like sulphuric acid.The steel is fully resistant to stress corrosion cracking as well as crevice corrosion. This grade is non-magnetic in nature and is offering high formability, weldability, and toughness. This grade is having the number of cost-effective ingredients like nickel and molybdenum. Today mostly the applications are using this grade alloy.
High durability, high flexibility, rugged construction, high tensile strength, good dimensional accuracy, fine surface finishes, non-corrosiveness, easy to use, longevity is all making the product high in demand. The product is having good ability to resist stress corrosion cracking, pitting, oxidation, crevice corrosion, general corrosion resistance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
The manufacturing of the 904L Plates is conducted at the well-organized industry using the superior quality of alloy. The alloy before made is use is well examined by the team of professional for the assurance of quality of product fabrications. The use of available latest technology and modern tools are considered so that all tough applications needs can be satisfied with that developed industrial product. The industry owes the highly experienced group of well-qualified professionals for the purpose of high quality of product fabrications by their valuable guidance to the workforce. The fabrication of the product is done in accordance with national and international product quality standards.
There are several testing the industry mandatorily conducted in order to make sure that the quality of the product range is produced and supplied. The tests are like positive material identification test, mechanical test, intergranular corrosion test, pitting resistance test, macro test, micro test, macro test, flattening test, flaring test etc. These tests prevent the suppliers from delivering the poorly produced product to the buyers.
There are many essential documents the industry provides to the buyers. This is to make sure to the buyers that 100% transparency is maintained when dealing with them. Documents provided to the patrons are like guarantee letter, packaging list, commercial invoice, packaging list, raw material test report, material traceability report, lab test report etc.
The mill test certifications are offered to the buyers is in accordance with EN 10204/3.12B. The other documents like 100% radiography test report, third-party test report, raw material certificate, and buyers test report are offered.
904L plates delivering are guaranteed to be done well on time so that all applications demands can be well satisfied easily. As the suppliers take the help of fastest transportation means like railways and airways, the shipping is assured on time. At the time of shipping, the packaging of plates is done using the wooden cases, wooden pallets to assure faster and safer and damage free shipping of the product.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19 – 23 | 4 – 5 | 23 – 28 | 1 – 2 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
ss 904l grade plate stockists in mumbai, stainless steel 904l chequered plate exporters in Mumbai, stainless steel 904l plate hardness, ss 904l cr sheets, ss 904l sheets specifications, ss 904l hr plate price list, astm a240 ss 904l sheets & plates manufacturer in india, ss 904l plate traders in mumbai, ss grade 904l polish plates dealer in mumbai, stainless steel 904l sheets & plates chemical composition, ss 904l sheets & plates equivalent grade, stainless steel 904l shim sheet in mumbai, ss 904l sheets & coils suppliers in india, ss grade 904l sheets stockholder in india, ss 904l plates pdf, ss gr. 904l plates in india, plate grade 904l, ss 904l slitting coils exporter in india, 904l ss sheets manufacturers in mumbai, steel n08904 sheets, ss 904l cr sheets properties, stainless steel 904l cold rolled sheets supplier in mumbai, ss 904l chequered plate prices, ss 904l finish sheets, ss din 1.4539 plates equivalent, ss 904l hot rolled plate stockists in india, ss 904l slitting coils properties, ss 904l sheets & coils stockholder in mumbai, stainless steel 904l coils Distributor, uns n08904 sheets thickness, ss grade 904l shim sheets in india.
Cutting
Forming Drilling / Machining
Grinding
Testing
Machine building
Pylons and other architectural structures
Lifting and mobile equipment
Construction of bridges
Wearing plates
Framework structures
Crane booms
Rail cars
Stone or iron chutes
Truck frames
Containers
Vehicles and transport equipment
Steel constructions
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
