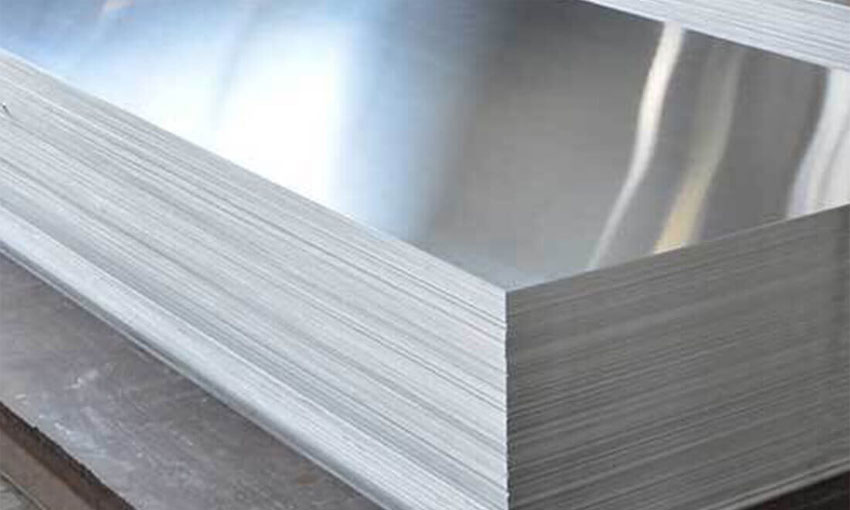

Diamond Alloys all across the globe is listed on the top ranking producers, suppliers and stockiest of a qualitative range of Suplex Duplex steel S32750/S32760 sheet & plate. The product is having excellent corrosion resistance at a wider range of media with exceptional resistance to crevice corrosion and pitting at both chlorides containing atmosphere and in seawater. Thus, this product is used in many applications all across the globe. It is also exhibiting the low coefficient of the thermal expansion and greater heat conductivity than the austenitic steel. It is also suitable for working temperature to 300 deg C.
Catering to all the needs of the buyers the product requirements of the buyers the industry provides standard as well as custom made specifications of the product.
The product range offered to the buyers is varying in specifications, standards, sizes, surface finishes, length, forms etc. The product to the buyers is offered at market leading rates in addition to sales after and before services.
A short description of the alloy-
Super Duplex steel S32750/S32760 is duplex stainless steel alloy that is created for featuring the high tensile strength, erosion-corrosion resistance, stress corrosion cracking resistance ability. Also, it is resistance to corrosion fatigue and is having strong weldability. The high chromium and molybdenum alloy content are making it too much resistant to uniform corrosion by organic acid like acetic and formic acid. The alloy is also providing excellent resistant to inorganic acid particularly at those that are having chlorides.
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex 2507 | 1.4410 | S32750 / S32760 |
How are the super duplex steel sheet and plates manufactured
The manufacturing of the Suplex Duplex steel S32750/S32760 sheet & plate at the well organized and operational infrastructure is thoroughly conducted using quality of raw materials. The product is fabricated under the strict guidance of professional experts that are highly skilled, trained, and knowledgeable and is having good years of working experience in the same zone. They with good guidance are helping the producer in bringing out an excellent quality of the product.
Additionally, the team of quality control is also hired that looks at the quality maintenance of the product so that the quality of product fabrication can be assured. The manufacturing of the product is done as per several product quality standards and set up guidelines for product fabrication.
Testing of the product-
Before the product packaging and sending it to the buyers the effective testing is conducted by the team of experts. The main reason for conducting the tests is to assure the quality of product fabrication. The test conducted is positive material identification test, intergranular corrosion test, mechanical test, chemical test, hardness test, pitting resistance test, flattening test, flaring test, macro/micro test.
MTC and documents offered to the buyers-
The mill test certifications are offered to universal buyers are as per EN 10204/3.1B. The test certifications like 100% radiography test report, third-party test report, raw material certificate, and buyers test report. Additionally, the essential documents like fumigation certificate, commercial invoice, packaging list, heat treatment chart, quality assurance plan, material test report and material traceability report are provided to the buyers.
About product packaging and delivering-
The Suplex Duplex steel S32750/S32760 sheet & plate is properly packed into the wooden cases, wooden pallets. This helps the suppliers to supply the ordered product to the buyers without causing any damages. They also do the product packaging as per the demands of the respective buyers. The industry for preventing delaying in product shipping is taking the help of the fastest means of transportation that guarantees faster shipping. The industry as connected with reliable logistic partners that promise in supplying the product on time and without delaying unnecessarily.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR). |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S32750 | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| S32760 | 0.05 max | 1.00 max | 1.00 max | 0.030 max | 0.010 max | 24.00 – 26.00 | 3.00 – 4.00 | 6.00 – 8.00 | 0.20 – 0.30 | 57.61 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Super Duplex S32750 / S32760 | 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Super Duplex Steel S32750 sheets specifications, Super Duplex Steel S32750 hr plates in mumbai, Super Duplex Steel S32750 sheets & coils suppliers in india, Super Duplex Steel 2507 2d finish cr sheets, Super Duplex S32750 slitting coils properties, astm a240 Super Duplex Steel S32760 2b finish sheets & plates manufacturer in india, Super Duplex Steel S32760 hot rolled plate stockists in india, Super Duplex Steel S32760 sheets, Super Duplex Steel grade S32760 sheets in india, grade S32750 Super Duplex Steel sheets, Super Duplex S32760 hr plate price list, Super Duplex Steel grade S32760 sheets stockholder in india, Super Duplex Steel S32750 plates pdf, Super Duplex Steel S32750 grade plate stockists in mumbai, Super Duplex Steel S32750 sheets & plates equivalent grade, Super Duplex 2507 coils Distributor, Super Duplex S32760 plate traders in mumbai, Super Duplex Steel S32750 cr sheets properties, Super Duplex Steel S32750 cold rolled sheets supplier in mumbai, Super Duplex Steel 2507 sheets & plates chemical composition, Super Duplex Steel S32760 plate exporters in Mumbai, plate grade S32750, Super Duplex gr. S32760 plates in india, Super Duplex grade S32760 plates dealer in mumbai, Super Duplex Steel 2507 sheets & coils stockholder in mumbai, S32750 Super Duplex sheets manufacturers in mumbai, Super Duplex Steel S32750 hr plate prices, Super Duplex Steel din 1.4410 plates equivalent, Super Duplex Steel S32750 plate hardness, Super Duplex Steel S32760 slitting coils exporter in india, uns S32750 sheets thickness.
Cutting
Forming Drilling / Machining
Grinding
Testing
Machine building
Pylons and other architectural structures
Lifting and mobile equipment
Construction of bridges
Wearing plates
Framework structures
Crane booms
Rail cars
Stone or iron chutes
Truck frames
Containers
Vehicles and transport equipment
Steel constructions
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
