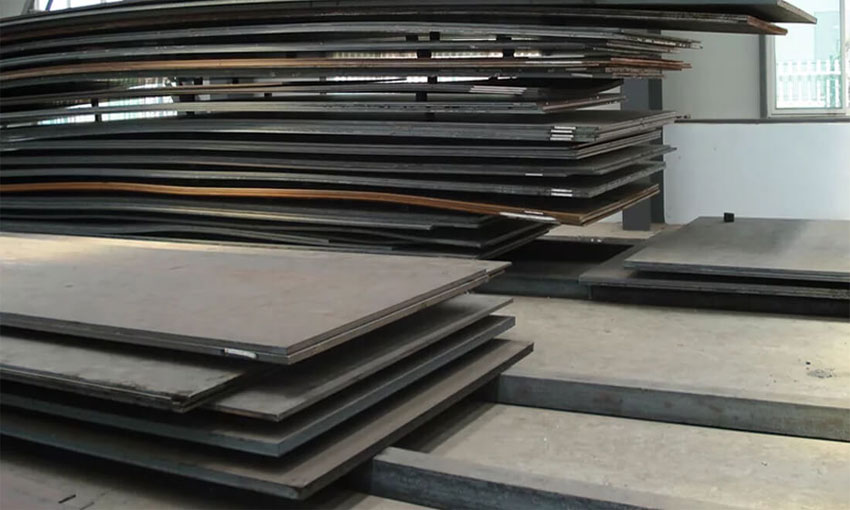

QUEND 700 PLATES
Diamond Alloys is a top leading manufacturer, supplier, stockiest and exporter of the very good quality of range of Quend 700 plates. The offered product ranges are actually fabricated of the very good quality of alloy. Also, the plates are designed as per international and national product quality standards. The product today has found many applications and is used at many industrial applications at wider industries.
HIGH QUALITY QUEND 700 PLATES, QUEND 700 HIGH STRENGTH STEEL PLATES, QUEND 700 QUENCHED AND TEMPERED STRUCTURAL STEEL PLATES, QUEND 700 PLATES, QUEND 700 PLATES SUPPLIERS, QUEND 700 PLATES STOCKIST IN MUMBAI, INDIA.
QUEND 700 HIGH YIELD STEEL PLATE, QUEND 700 PLATES DEALER, HIGH STRENGTH QUEND 700 PLATES, QUEND 700 SHEET AND PLATE EXPORTER, QUEND 700 STRUCTURAL STEEL PLATES, QUEND 700 PLATES SUPPLIERS IN MUMBAI, QUEND 700 PLATES SUPPLIER IN MUMBAI, INDIA.
QUEND 700 PLATES
The industry as a supplier is offering the product at standard and custom made specifications. They provide the product that varies at wall thickness, sizes, standards, dimensions, and specifications. Also on the demands of buyers, the product is delivered at cut-made specifications and at reasonable rates. To the universal buyers, the product is supplied at market leading rates with value-added and sales after services.
Quend 700 is the extra high strength structural steel alloy that is developed as a tempered and quenched with the yielding strength of minimum 700 MPA. The quend 700 complies with the needs corresponding to S690QL that is given into the EN 10025-6 standard. Here the impact toughness is assured at -40 Deg C.
No doubt the availability of the latest technology and modern has helped the producers in fabricating the Quend 700 plates of excellent quality. The fabrication of the plates strictly is done under the proper guidance of a professional expert’s team that knows very well all about the better quality of the plate’s production. Plus at the manufacturing industry, the availability of quality control team has helped the producers in making the very good quality of plates.
| Standard |
ASTM A514/A514M-13 |
| Thickness |
5mm-150mm |
| Width |
1000mm-4500mm |
| Length |
3000mm -18000mm |
| Process |
Hot Rolled (HR) |
| Delivery State |
Quenched and Tempered |
CHEMICAL COMPOSITION OF QUEND 700 PLATES
| C |
Si |
Mn |
P |
S |
Nb |
Cr |
V |
Ti |
Ni |
Al |
Mo |
N |
B |
| 0.20 max % |
0.60 max % |
1.50 max % |
0.020 max % |
0.010 max % |
0.40 max % |
0.60 max % |
0.70 max % |
0.40 max % |
1.00 max % |
0.070 max % |
0.50 max % |
0.014 max % |
0.005 max % |
MECHANICAL PROPERTIES OF QUEND 700 PLATES
| Thickness mm |
CEV |
CET |
| 4 - 15 |
0.45 |
0.29 |
| 15.01 - 25 |
0.44 |
0.30 |
| 25.01 - 40 |
0.45 |
0.30 |
| 40.01 - 64 |
0.54 |
0.33 |
WE OFFERS FOLLOWING PROCESSING FOR QUEND 700 SHEETS & PLATES
Cutting,
Forming Drilling / Machining,
Grinding,
Testing
APPLICATIONS OF QUEND 700 PLATES
Machine building,
Pylons and other architectural structures,
Lifting and mobile equipment,
Construction of bridges,
Wearing plates,
Framework structures,
Crane booms,
Rail cars,
Stone or iron chutes,
Truck frames,
Containers,
Vehicles and transport equipment,
Steel constructions,
Anti drill plates such as security doors, shot blasting
equipment and tumbling machine.
