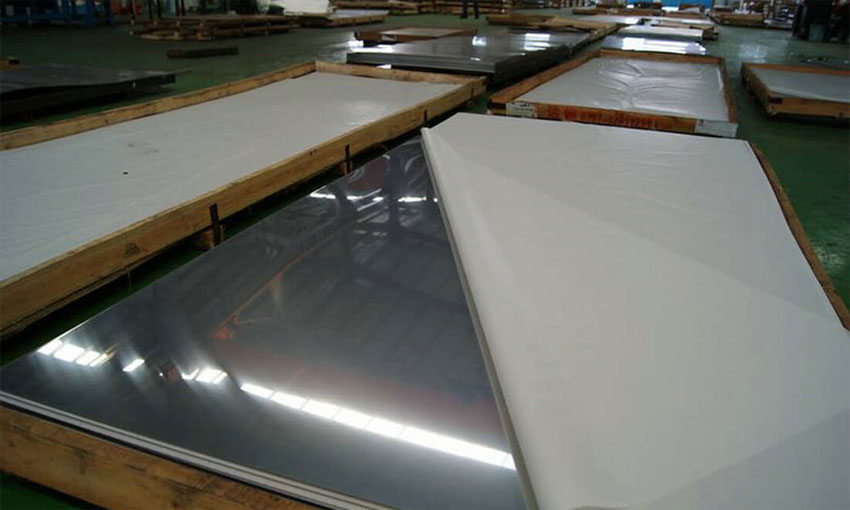

SS 316/SS 316L Plates are a part of austenitic family of stainless steel and is widely used grade in industrial application. The plates formed of this grade withstand almost in every situations. The characteristics and properties of both the grade differ slightly but there strength is equivalent in extensive environment.
Talking about the SS 316 grade, it has a high content of nickel present which gives an excellent corrosion resistance and strength as compared with other SS grades. The 316 SS grade plates are widely used in market due to its low cost maintenance and high availability.
On the other hand, 316 grades are modified into a low carbon content grade and that is 316L. The presence of high chromium content and molybdenum in 316L grades offers outstanding corrosion resistance, pitting resistance to acidic environment, general resistance to corrosive environment, stress corrosion cracking resistance and good strength. The plates of stainless steel 316L have the same structure in high elevated temperature and pressure conditions. Both the grade when used in forming the plates offers excellent ductility, malleability and toughness that enhance their productivity among various industries.
A brief description of industry:
Although, there are various industries in the market that manufactures and exports high quality of SS 316/SS 316L Plates to their buyers across the world. There is one industry which is ISO certified supplier and largest exporter of SS grade products. Diamond Alloys is one of the highly recommended and most prominent industry established in the market that manufactures excellent quality of SS 316/SS 316L Plates for their buyers. The industry has their specialization in Offshore and Structural Steel plates for which the industry is the leader and biggest stockiest in India.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
The characteristics of these plates are highly appreciable. Properties such as good resistance to corrosion, low phosphorus content, pitting resistance, excellent strength and other are some of the attributes. Moreover, they provide customized SS 316/SS PLATES varying in size, shapes and thickness as per the necessity of the regarded buyers. Industry is committed in offering complete customer satisfaction when it comes to quality, performance and durability of the SS products.
Manufacturing and quality tests of SS grade Plates:
While manufacturing, Diamond Alloys use finest quality of raw material that are procured from reliable market vendors. Further, these materials are then quality tested by the industry professionals. The industry is engaged in offering the best quality products to their buyers. And in order to do so, they use modern machinery tools and other inventory technology in order to enhance the productivity of the SS 316/SS 316L Plates.
The industry professionals keep checking the quality of the SS grade plates at every stage of its manufacturing. They perform relevant material tests on SS 316 PLATES in order to ensure the quality and plate’s efficiency before finally delivering it to the customers. Tests performed are mechanical test, positive material identification test, intergranular corrosion test, pitting resistance test, flaring test, flattening test, ultrasonic test and chemical analysis are some of the important tests conducted by the professionals on the sheets.
Packaging and documentations offered by the industry:
In order to avoid any kind of damage on SS 316/SS 316L Plates, industry use efficient packaging methods in order to preserve the quality of the product until the final destination. The SS grade plates are wrapped in poly bags and then further packed in wooden cases, crates and pallets that are free from fumigation and other impurities.
Besides, the documents offered by the industry helps them to counterpart the product with the documents offered. Documents such as fumigation certificate, welding procedure specification, QAP, heat treatment chart, packaging list that includes the net and the gross weight and commercial invoice are some of the documents offered.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 10.00 - 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
ss 316l finish sheets, ss 316 sheets & coils stockholder in mumbai, uns S31600 sheets thickness, ss grade 316 sheets stockholder in india, stainless steel 316l sheets & plates chemical composition, ss 316 sheets & plates equivalent grade, ss 316 chequered plate prices, stainless steel 316 plate hardness, stainless steel 316 chequered plate exporters in Mumbai, plate grade 316, ss 316 hr plate price list, ss 316 hot rolled plate stockists in india, astm a240 ss 316 sheets & plates manufacturer in india, ss din 1.4401 / 1.4436 plates equivalent, ss 316l plate traders in mumbai, stainless steel 316 coils Distributor, ss gr. 316l plates in india, ss 316 cr sheets properties, stainless steel 316 cold rolled sheets supplier in mumbai, ss 316l sheets specifications, ss grade 316l shim sheets in india, ss 316l plates pdf, ss 316 slitting coils properties, ss 316l grade plate stockists in mumbai, ss grade 316 polish plates dealer in mumbai, ss 316l cr sheets, ss 316l sheets & coils suppliers in india, steel S31603 sheets, 316 ss sheets manufacturers in mumbai, stainless steel 316 shim sheet in mumbai, ss 316l slitting coils exporter in india.
Cutting
Forming Drilling / Machining
Grinding
Testing
Machine building
Pylons and other architectural structures
Lifting and mobile equipment
Construction of bridges
Wearing plates
Framework structures
Crane booms
Rail cars
Stone or iron chutes
Truck frames
Containers
Vehicles and transport equipment
Steel constructions
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
