Diamond Alloys is the reliable and trustworthy industry that is globally dealing as a manufacturer, supplier, stockiest and exporter of industrial goods. They in addition to high quality of SS 317/SS 317L plates are offering the timely executed excellent quality of value-added and sales after services to the buyers all across the globe. Today the product as versatile in nature is used in many applications in the range of industries all across the globe. This grade plate is classified into ferritic, austenitic and martensitic steel that is based upon the crystalline structure.
With regards to several product quality standards, the industry as producers is manufacturing a qualitative range of SS 317/SS 317L plates.
They are making and supplying the products that vary in wall thickness, sizes, standards, grade, dimensions, and specifications. On the request of the buyers, the product to the buyers is also delivered at custom made specifications. Also, the product is supplied to the universal buyers at market leading rates.
Description of the alloy SS317/SS317L-
Stainless steel 317 is actually the modified version of the other stainless steel alloy with the greater molybdenum alloy addition. This is in order to improve the pitting corrosion resistance and to increase strength. Alloy stainless steel 317L is the low carbon version of alloy SS 317that is providing the well-improved resistance to corrosion that is relative to the other alloy. Here the low carbon content permits alloy SS 317L to get welded easily with no sensitization to the intergranular corrosion resulting from the chromium carbide precipitations at the grain boundaries. Both alloys are used widely in many applications in different industries all across the globe.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | - |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
How is the product fabricated in the industry
To assure that there is effectiveness in the production of SS 317/SS 317L plates, the producers use the superior quality of raw materials. The raw materials that they are using are collected from reliable market vendors. Before utilizing the acquired materials, they check it thoroughly for assurance of 100% purity in it. They during the time of product fabrications are making use of available sophisticated technology and modern tools and machinery that helps in adding superiority to the product quality. At the well-equipped industry, the manufacturing of the product is done as per national and international product quality standards.
There at the manufacturing unit, the team of highly knowledgeable and skilled professional experts team is available that are looking at the entire production stages of plates. Also, the availability of the quality control team is helping the manufacturer in maintaining the quality of SS plates at all level of production stages.
How is the testing of the product conducted
There at the time of manufacturing of the SS 317/SS 317L plates, the industry essentially conducts the product quality check through testing. The product testing is done by experts with the help of available modern tools. The tests conducted are positive material identification test, flattening test, mechanical test, chemical test, hardness test, mechanical test, pitting resistance test, macro test, micro test, flaring test etc.
The MTC offered-
The industry provides mill test certifications to the global buyers in accordance with EN 10204/31B. They too provide the other test certifications including 100% radiography test report, raw material certificate, third-party test report and also buyers test report.
Documentations of the product-
Fumigation certificate, raw material test report, material traceability report, packaging list, guarantee letter, lab test report, and commercial invoice etc are few documents provided to the buyers.
The packaging of the plates-

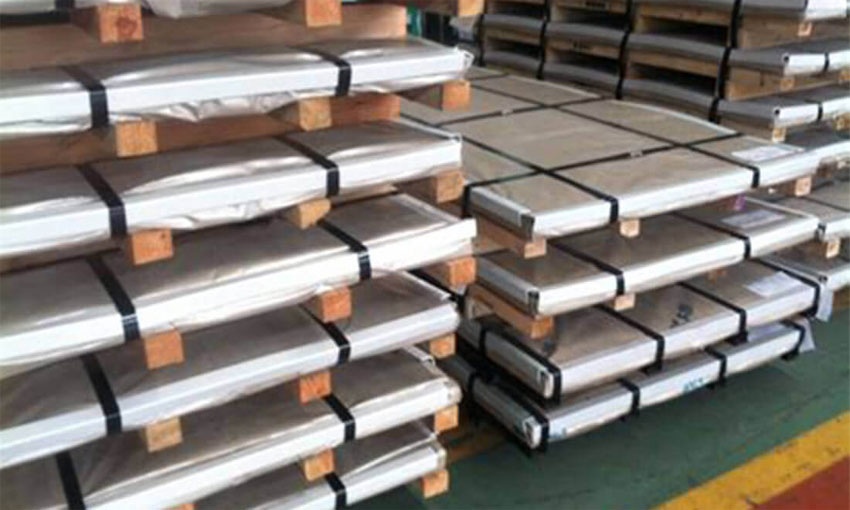

SS 317/SS 317L plates at the time of shipping are properly packed with the help of wooden cases and wooden pallets for safer shipping.
| Specifications | ASTM A240 / ASME SA240 |
|---|---|
| Width | 1000mm / 1219mm /1250mm / 1500mm / 2000mm |
| Length | 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Form | Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 - 20.00 | 3.00 - 4.00 | 11.00 - 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
ss 317 chequered plate prices, stainless steel 317l sheets & plates chemical composition, ss 317 slitting coils properties, ss 317 cr sheets properties, plate grade 317, ss 317l sheets & coils suppliers in india, ss 317l grade plate stockists in mumbai, ss gr. 317l plates in india, stainless steel 317 shim sheet in mumbai, stainless steel 317 plate hardness, ss 317l plates pdf, steel S31703 sheets, ss 317 hr plate price list, ss grade 317 sheets stockholder in india, ss 317l cr sheets, stainless steel 317 cold rolled sheets supplier in mumbai, ss grade 317 polish plates dealer in mumbai, ss 317l sheets specifications, stainless steel 317 coils Distributor, astm a240 ss 317 sheets & plates manufacturer in india, ss 317 hot rolled plate stockists in india, 317 ss sheets manufacturers in mumbai, ss grade 317l shim sheets in india, ss 317l plate traders in mumbai, uns S31700 sheets thickness, ss din 1.4449 plates equivalent, ss 317 sheets & plates equivalent grade, ss 317l slitting coils exporter in india, stainless steel 317 chequered plate exporters in Mumbai, ss 317 sheets & coils stockholder in mumbai, ss 317l finish sheets.
Machine building
Pylons and other architectural structures
Lifting and mobile equipment
Construction of bridges
Wearing plates
Framework structures
Crane booms
Rail cars
Stone or iron chutes
Truck frames
Containers
Vehicles and transport equipment
Steel constructions
Anti drill plates such as security doors, shot blasting equipment and tumbling machine
